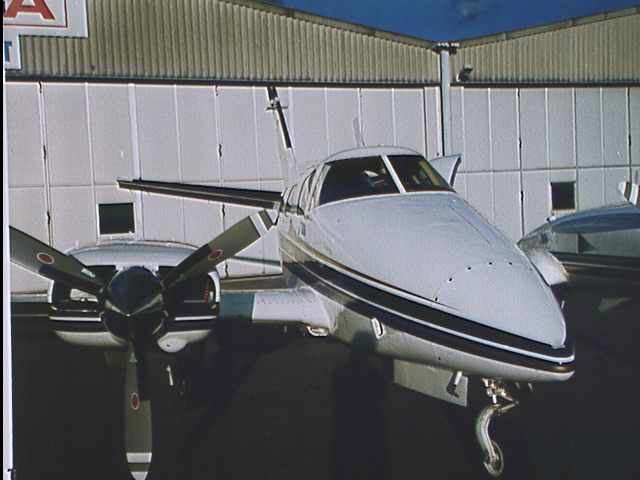

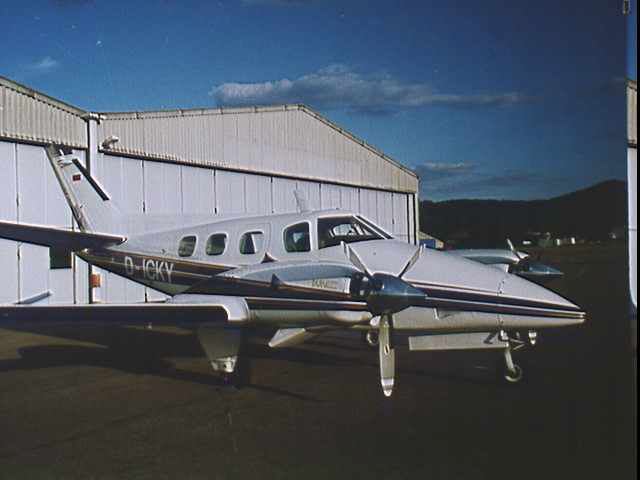

Beechcraft Duke B-60
Reg. : D-ICKY
SN P-342
Year of Manufacture : 1975
TTSN : 1950 hrs
Empty Weight : 4.969 lbs
Max T/O Weight : 6.775 lbs
6 Seats, Conference
Fuel Capacity : 202 US GAL
Known Ice cerified
NDH
Engines
LH Engine : TIO-541-E1C4 SN : RL-292-59
Factory Remanufactured 4/96
TT : 50 hrs
RH Engine : TIO-541-E1C4 SN : RL-1447-59
Factory Remanufactured 4/96
TT : 50 hrs
Fuel Injection, Turbocharger, Engine Driven Fuel Pumps, Ignition Harness etc. of both engines New/Reman at time of engine replacement
All hoses TEFLON replaced 11/94 or at time of engine replacement
Propellers
2 x HARTZELL PROPELLERS HC-F3YR-2UF/FC7479B-2R OH 11/94
2 x WOODWARD GOVERNER 210556 OH 11/94
Propeller De-Ice Equipment (Boots new at O/H, Cycling Timer replaced 1994)
Avionics and Panel Equipment
2 x COM COLLINS VHF 22 A WITH CTL 22 CONTROL HEADS (NEW 5/97)
2 x NAV COLLINS VIR 32 WITH CTL 32 CONTROL HEADS (NEW 5/97)
1 x Marker KING GOLD CROWN KMR 675
1 x ADF KING GOLD CROWN KDF 805 WITH COLLINS CTL 62 CONTROL HEAD
2 x TRANSPONDER KING GOLD CROWN KXP 756 WITH SINGLE KFS 765 CONTROL HEAD
1 x DME KING GOLD CROWN KDM 705 A
1 x RADIO ALTIMETER COLLINS ALT 50 WITH DRI 55 CONTROL HEAD (NEW 5/97)
1 x AUDIO SYSTEM KING GOLD CROWN KAA 445 WITH KING KA 119 CONTROL
1 x WX Radar BENDIX RDR 130
1 x ELT POINTER
P3000
2 x Encoding Altimeters
1 x A/P with FD CENTURY IV
1 x YAW DAMPER (System O/H 1995)
1 x GPS GARMIN 155 (New 1995)
1 x MOVING MAP ARGUS 5000 (New 1995)
(GARMIN AND ARGUS are fully integrated in A/P system and certified; installation 1995)
1 x FUEL COMPUTER SHADIN DIGIFLO (New 1990)
1 x GRAPHIC ENGINE MONITOR GEMINI 1200 (New 1994)
1 X WOODWARD PROPELLER SYNCRONIZER (System Components totally replaced 1995)
1 x RMI KING
Ground Com Installation 1995
Full CO-PILOT
Panel
Interior
Light grey seats with dark blue carpet (wall to wall)
New Interior 1993 8/10
Six reclining, track mounted seats
Shoulder harness on Pilot and Co-Pilot Position
6 Place Oxygen System
Factory Air Condition (Compressor New 1996)
1 Factory Refreshment Centre (LH) with Thermos Cradle (2 new Thermos Cans), Ice Box, Sugar Drawer and large Catering Drawer
1 Tailor Made Storage Cabinet for two Jeppesen Binders, one open shaft for checklists etc. and three drawers. (New 1996)
Heated Windshield Pilot Side
Ventilation System on each Seat
Reading Lights on every Seat
Courtesy Light on hot bus
Rosen Sunvisor System for Pilot and Co-Pilot side (New 1995)
10 Windows SUN FOIL Sun Screen System in seperate bag (New 1995)
Rudder, Aileron and Throttle Lock
Baggage Compartment fully carpeted and lighted
1 Axe
1 First Aid Kit
Exterior
Colors : Alumigripp Snow White with Blue (RAL 5011) and Gold (VW 98 A) Stripes
New Exterior 1989. Aircraft completely stripped before new paint. 8/10
De-Ice Boots (All Boots and System new 10/95 together with ejector valve and two reman. vaccum pumps)
2 Heated Pitot Tubes
Heated Fuel Vents
Anti-Corrosion Treatment with ACF 50 in 10/1995
2 Landing Lights
(Wings)
1 Taxi Light (Nose Gear)
1 Wing Ice Light
3 Nav Lights
3 Point Strobe Light System (New Strobe Light Box 1996)
Single Point Refuelling each wing
External Power Receptical LH nascell
9 Piece Tailor Made Leather External Plug System (new 1995)
2 Pitot Covers
1 Nose Gear Lock Plate »DO NOT TOW - RUDDER LOCKED«
Other
10 Ltrs DE-ICE FLUID in spray canister for ground use
Pressurization System : all system components replaced 1990 except controller, controller replaced 1996
Last updated : 16.5.1997
